TSUBAKI椿本PX同步带HY规格UP8M60-HY

TSUBAKI椿本PX同步带HY规格UP8M60-HY

TSUBAKI椿本PX同步带HY规格UP8M60-HYTSUBAKI椿本PX同步带HY规格UP8M60-HYTSUBAKI椿本PX同步带HY规格UP8M60-HY更多详情咨询：13024103468 刘经理型号：UP8M60-HY单击放大PDF 外形图请参照下表DXF图形和3D CAD数据CADENASWEB2CAD站点主要规格皮带宽度单位质量g/ (mm宽×m长)安装张力N {kgf}推荐值最大

TSUBAKI椿本PX同步带HY规格UP8M60-HY

TSUBAKI椿本PX同步带HY规格UP8M60-HY

TSUBAKI椿本PX同步带HY规格UP8M60-HY

更多详情咨询：13024103468 刘经理


  • 型号：UP8M60-HY


  • 单击放大

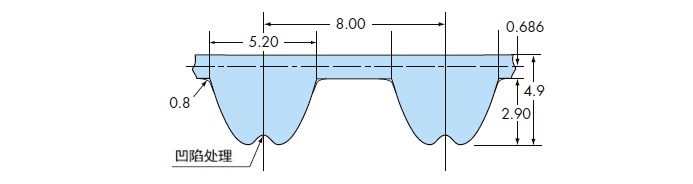

    PDF 外形图

    请参照下表


    DXF图形和3D CAD数据

    CADENASWEB2CAD站点

  • 主要规格


    皮带宽度单位质量
    g/ (mm宽×m长)    		安装张力N {kgf}
    推荐值最大值
    604.51150 {117.3}1308 {133.4}
    材质橡胶高强度合成橡胶

    		耐磨尼龙织布
    导电心线碳纤维和高强度玻璃纤维的混合物
    环境条件应用滑轮PX带轮P8M
    耐油、耐水性无 (不可使用)
    环境温度-15℃～80℃
    RoHS法规可对应
    导电性无

    皮带长度、标准价格、交货期


    ※是按订单生产的产品。批量销售品的批量请咨询本公司。

    *全部开启 全部关闭

    周长760 ~ 880

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG760UP8M60-HY76095请咨询请咨询批量销售PDF
    BG776UP8M60-HY77697请咨询请咨询批量销售PDF
    BG800UP8M60-HY800100请咨询请咨询批量销售PDF
    BG816UP8M60-HY816102请咨询请咨询批量销售PDF
    BG824UP8M60-HY824103请咨询请咨询批量销售PDF
    BG832UP8M60-HY832104请咨询请咨询批量销售PDF
    BG840UP8M60-HY840105请咨询请咨询批量销售PDF
    BG848UP8M60-HY848106请咨询请咨询批量销售PDF
    BG856UP8M60-HY856107请咨询请咨询批量销售PDF
    BG880UP8M60-HY880110请咨询请咨询批量销售PDF

    周长896 ~ 1040

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG896UP8M60-HY896112请咨询请咨询批量销售PDF
    BG912UP8M60-HY912114请咨询请咨询批量销售PDF
    BG920UP8M60-HY920115请咨询请咨询批量销售PDF
    BG936UP8M60-HY936117请咨询请咨询批量销售PDF
    BG944UP8M60-HY944118请咨询请咨询批量销售PDF
    BG960UP8M60-HY960120请咨询请咨询批量销售PDF
    BG984UP8M60-HY984123请咨询请咨询批量销售PDF
    BG1000UP8M60-HY1000125请咨询请咨询批量销售PDF
    BG1032UP8M60-HY1032129请咨询请咨询批量销售PDF
    BG1040UP8M60-HY1040130请咨询请咨询批量销售PDF

    周长1056 ~ 1208

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1056UP8M60-HY1056132请咨询请咨询批量销售PDF
    BG1080UP8M60-HY1080135请咨询请咨询批量销售PDF
    BG1096UP8M60-HY1096137请咨询请咨询批量销售PDF
    BG1120UP8M60-HY1120140请咨询请咨询批量销售PDF
    BG1128UP8M60-HY1128141请咨询请咨询批量销售PDF
    BG1152UP8M60-HY1152144请咨询请咨询批量销售PDF
    BG1160UP8M60-HY1160145请咨询请咨询批量销售PDF
    BG1192UP8M60-HY1192149请咨询请咨询批量销售PDF
    BG1200UP8M60-HY1200150请咨询请咨询批量销售PDF
    BG1208UP8M60-HY1208151请咨询请咨询批量销售PDF

    周长1216 ~ 1360

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1216UP8M60-HY1216152请咨询请咨询批量销售PDF
    BG1240UP8M60-HY1240155请咨询请咨询批量销售PDF
    BG1248UP8M60-HY1248156请咨询请咨询批量销售PDF
    BG1264UP8M60-HY1264158请咨询请咨询批量销售PDF
    BG1280UP8M60-HY1280160请咨询请咨询批量销售PDF
    BG1304UP8M60-HY1304163请咨询请咨询批量销售PDF
    BG1320UP8M60-HY1320165请咨询请咨询批量销售PDF
    BG1344UP8M60-HY1344168请咨询请咨询批量销售PDF
    BG1352UP8M60-HY1352169请咨询请咨询批量销售PDF
    BG1360UP8M60-HY1360170请咨询请咨询批量销售PDF

    周长1400 ~ 1760

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1400UP8M60-HY1400175请咨询请咨询批量销售PDF
    BG1424UP8M60-HY1424178请咨询请咨询批量销售PDF
    BG1440UP8M60-HY1440180请咨询请咨询批量销售PDF
    BG1480UP8M60-HY1480185请咨询请咨询批量销售PDF
    BG1520UP8M60-HY1520190请咨询请咨询批量销售PDF
    BG1576UP8M60-HY1576197请咨询请咨询批量销售PDF
    BG1600UP8M60-HY1600200请咨询请咨询批量销售PDF
    BG1640UP8M60-HY1640205请咨询请咨询批量销售PDF
    BG1680UP8M60-HY1680210请咨询请咨询批量销售PDF
    BG1760UP8M60-HY1760220请咨询请咨询批量销售PDF

    周长1800 ~ 2160

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1800UP8M60-HY1800225请咨询请咨询批量销售PDF
    BG1816UP8M60-HY1816227请咨询请咨询批量销售PDF
    BG1888UP8M60-HY1888236请咨询请咨询批量销售PDF
    BG1904UP8M60-HY1904238请咨询请咨询批量销售PDF
    BG1960UP8M60-HY1960245请咨询请咨询批量销售PDF
    BG2000UP8M60-HY2000250请咨询请咨询批量销售PDF
    BG2032UP8M60-HY2032254请咨询请咨询批量销售PDF
    BG2064UP8M60-HY2064258请咨询请咨询批量销售PDF
    BG2104UP8M60-HY2104263请咨询请咨询批量销售PDF
    BG2160UP8M60-HY2160270请咨询请咨询批量销售PDF

    周长2240 ~ 2768

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG2240UP8M60-HY2240280请咨询请咨询批量销售PDF
    BG2256UP8M60-HY2256282请咨询请咨询批量销售PDF
    BG2304UP8M60-HY2304288请咨询请咨询批量销售PDF
    BG2320UP8M60-HY2320290请咨询请咨询批量销售PDF
    BG2400UP8M60-HY2400300请咨询请咨询批量销售PDF
    BG2456UP8M60-HY2456307请咨询请咨询批量销售PDF
    BG2496UP8M60-HY2496312请咨询请咨询批量销售PDF
    BG2600UP8M60-HY2600325请咨询请咨询批量销售PDF
    BG2712UP8M60-HY2712339请咨询请咨询批量销售PDF
    BG2768UP8M60-HY2768346请咨询请咨询批量销售PDF

    周长2800 ~ 4400

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG2800UP8M60-HY2800350请咨询请咨询批量销售PDF
    BG2896UP8M60-HY2896362请咨询请咨询批量销售PDF
    BG2944UP8M60-HY2944368请咨询请咨询批量销售PDF
    BG3048UP8M60-HY3048381请咨询请咨询批量销售PDF
    BG3200UP8M60-HY3200400请咨询请咨询批量销售PDF
    BG3304UP8M60-HY3304413请咨询请咨询批量销售PDF
    BG3440UP8M60-HY3440430请咨询请咨询批量销售PDF
    BG3600UP8M60-HY3600450请咨询请咨询批量销售PDF
    BG3920UP8M60-HY3920490请咨询请咨询批量销售PDF
    BG4400UP8M60-HY4400550请咨询请咨询批量销售PDF
