TSUBAKI椿本PX同步带HY规格UP5M15-HY

TSUBAKI椿本PX同步带HY规格UP5M15-HY

TSUBAKI椿本PX同步带HY规格UP5M15-HYTSUBAKI椿本PX同步带HY规格UP5M15-HYTSUBAKI椿本PX同步带HY规格UP5M15-HY更多详情咨询：13024103468 刘经理型号：UP5M15-HY单击放大PDF 外形图请参照下表DXF图形和3D CAD数据CADENASWEB2CAD站点主要规格皮带宽度单位质量g/ (mm宽×m长)安装张力N {kgf}推荐值最大

TSUBAKI椿本PX同步带HY规格UP5M15-HY

TSUBAKI椿本PX同步带HY规格UP5M15-HY

TSUBAKI椿本PX同步带HY规格UP5M15-HY

更多详情咨询：13024103468 刘经理


  • 型号：UP5M15-HY


  • 单击放大

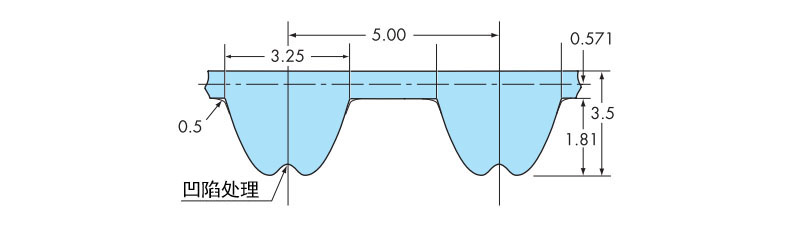

    PDF 外形图

    请参照下表


    DXF图形和3D CAD数据

    CADENASWEB2CAD站点

  • 主要规格


    皮带宽度单位质量
    g/ (mm宽×m长)    		安装张力N {kgf}
    推荐值最大值
    153.5194 {19.8}256 {26.1}
    材质橡胶高强度合成橡胶

    		耐磨尼龙织布
    导电心线碳纤维和高强度玻璃纤维的混合物
    环境条件应用滑轮PX带轮P5M
    耐油、耐水性无 (不可使用)
    环境温度-15℃～80℃
    RoHS法规可对应
    导电性无

    皮带长度、标准价格、交货期


    ※是按订单生产的产品。批量销售品的批量请咨询本公司。

    *全部开启 全部关闭

    周长600 ~ 710

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG600UP5M15-HY600120请咨询请咨询批量销售PDF
    BG635UP5M15-HY635127请咨询请咨询批量销售PDF
    BG640UP5M15-HY640128请咨询请咨询批量销售PDF
    BG645UP5M15-HY645129请咨询请咨询批量销售PDF
    BG650UP5M15-HY650130请咨询请咨询批量销售PDF
    BG680UP5M15-HY680136请咨询请咨询批量销售PDF
    BG690UP5M15-HY690138请咨询请咨询批量销售PDF
    BG695UP5M15-HY695139请咨询请咨询批量销售PDF
    BG700UP5M15-HY700140请咨询请咨询批量销售PDF
    BG710UP5M15-HY710142请咨询请咨询批量销售PDF

    周长725 ~ 810

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG725UP5M15-HY725145请咨询请咨询批量销售PDF
    BG730UP5M15-HY730146请咨询请咨询批量销售PDF
    BG740UP5M15-HY740148请咨询请咨询批量销售PDF
    BG750UP5M15-HY750150请咨询请咨询批量销售PDF
    BG765UP5M15-HY765153请咨询请咨询批量销售PDF
    BG770UP5M15-HY770154请咨询请咨询批量销售PDF
    BG775UP5M15-HY775155请咨询请咨询批量销售PDF
    BG780UP5M15-HY780156请咨询请咨询批量销售PDF
    BG800UP5M15-HY800160请咨询请咨询批量销售PDF
    BG810UP5M15-HY810162请咨询请咨询批量销售PDF

    周长830 ~ 950

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG830UP5M15-HY830166请咨询请咨询批量销售PDF
    BG835UP5M15-HY835167请咨询请咨询批量销售PDF
    BG850UP5M15-HY850170请咨询请咨询批量销售PDF
    BG865UP5M15-HY865173请咨询请咨询批量销售PDF
    BG880UP5M15-HY880176请咨询请咨询批量销售PDF
    BG900UP5M15-HY900180请咨询请咨询批量销售PDF
    BG905UP5M15-HY905181请咨询请咨询批量销售PDF
    BG920UP5M15-HY920184请咨询请咨询批量销售PDF
    BG940UP5M15-HY940188请咨询请咨询批量销售PDF
    BG950UP5M15-HY950190请咨询请咨询批量销售PDF

    周长965 ~ 1145

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG965UP5M15-HY965193请咨询请咨询批量销售PDF
    BG985UP5M15-HY985197请咨询请咨询批量销售PDF
    BG1000UP5M15-HY1000200请咨询请咨询批量销售PDF
    BG1025UP5M15-HY1025205请咨询请咨询批量销售PDF
    BG1050UP5M15-HY1050210请咨询请咨询批量销售PDF
    BG1060UP5M15-HY1060212请咨询请咨询批量销售PDF
    BG1080UP5M15-HY1080216请咨询请咨询批量销售PDF
    BG1090UP5M15-HY1090218请咨询请咨询批量销售PDF
    BG1125UP5M15-HY1125225请咨询请咨询批量销售PDF
    BG1145UP5M15-HY1145229请咨询请咨询批量销售PDF

    周长1150 ~ 1295

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1150UP5M15-HY1150230请咨询请咨询批量销售PDF
    BG1160UP5M15-HY1160232请咨询请咨询批量销售PDF
    BG1180UP5M15-HY1180236请咨询请咨询批量销售PDF
    BG1195UP5M15-HY1195239请咨询请咨询批量销售PDF
    BG1220UP5M15-HY1220244请咨询请咨询批量销售PDF
    BG1225UP5M15-HY1225245请咨询请咨询批量销售PDF
    BG1250UP5M15-HY1250250请咨询请咨询批量销售PDF
    BG1260UP5M15-HY1260252请咨询请咨询批量销售PDF
    BG1270UP5M15-HY1270254请咨询请咨询批量销售PDF
    BG1295UP5M15-HY1295259请咨询请咨询批量销售PDF

    周长1350 ~ 1615

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1350UP5M15-HY1350270请咨询请咨询批量销售PDF
    BG1390UP5M15-HY1390278请咨询请咨询批量销售PDF
    BG1420UP5M15-HY1420284请咨询请咨询批量销售PDF
    BG1490UP5M15-HY1490298请咨询请咨询批量销售PDF
    BG1495UP5M15-HY1495299请咨询请咨询批量销售PDF
    BG1530UP5M15-HY1530306请咨询请咨询批量销售PDF
    BG1550UP5M15-HY1550310请咨询请咨询批量销售PDF
    BG1585UP5M15-HY1585317请咨询请咨询批量销售PDF
    BG1595UP5M15-HY1595319请咨询请咨询批量销售PDF
    BG1615UP5M15-HY1615323请咨询请咨询批量销售PDF

    周长1650 ~ 2080

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1650UP5M15-HY1650330请咨询请咨询批量销售PDF
    BG1675UP5M15-HY1675335请咨询请咨询批量销售PDF
    BG1700UP5M15-HY1700340请咨询请咨询批量销售PDF
    BG1800UP5M15-HY1800360请咨询请咨询批量销售PDF
    BG1870UP5M15-HY1870374请咨询请咨询批量销售PDF
    BG1910UP5M15-HY1910382请咨询请咨询批量销售PDF
    BG1960UP5M15-HY1960392请咨询请咨询批量销售PDF
    BG2000UP5M15-HY2000400请咨询请咨询批量销售PDF
    BG2050UP5M15-HY2050410请咨询请咨询批量销售PDF
    BG2080UP5M15-HY2080416请咨询请咨询批量销售PDF

    周长2120 ~ 3930

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG2120UP5M15-HY2120424请咨询请咨询批量销售PDF
    BG2160UP5M15-HY2160432请咨询请咨询批量销售PDF
    BG2200UP5M15-HY2200440请咨询请咨询批量销售PDF
    BG2455UP5M15-HY2455491请咨询请咨询批量销售PDF
    BG2645UP5M15-HY2645529请咨询请咨询批量销售PDF
    BG2725UP5M15-HY2725545请咨询请咨询批量销售PDF
    BG2795UP5M15-HY2795559请咨询请咨询批量销售PDF
    BG3050UP5M15-HY3050610请咨询请咨询批量销售PDF
    BG3150UP5M15-HY3150630请咨询请咨询批量销售PDF
    BG3930UP5M15-HY3930786请咨询请咨询批量销售PDF
