TSUBAKI椿本PX同步带HY规格UP3M10-HY

TSUBAKI椿本PX同步带HY规格UP3M10-HY

TSUBAKI椿本PX同步带HY规格UP3M10-HYTSUBAKI椿本PX同步带HY规格UP3M10-HYTSUBAKI椿本PX同步带HY规格UP3M10-HY更多详情咨询：13024103468 刘经理型号：UP3M10-HY单击放大PDF 外形图请参照下表DXF图形和3D CAD数据CADENASWEB2CAD站点主要规格皮带宽度单位质量g/ (mm宽×m长)安装张力N {kgf}推荐值最大

TSUBAKI椿本PX同步带HY规格UP3M10-HY

TSUBAKI椿本PX同步带HY规格UP3M10-HY

TSUBAKI椿本PX同步带HY规格UP3M10-HY

更多详情咨询：13024103468 刘经理


  • 型号：UP3M10-HY


  • 单击放大

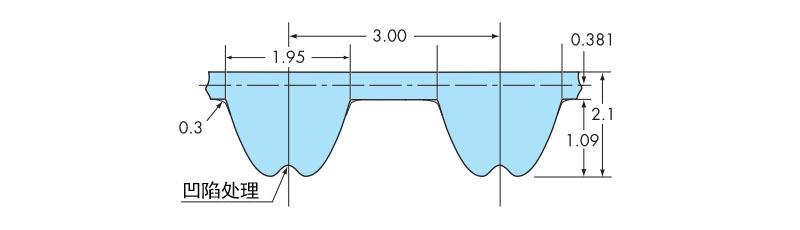

    PDF 外形图

    请参照下表


    DXF图形和3D CAD数据

    CADENASWEB2CAD站点

  • 主要规格


    皮带宽度单位质量
    g/ (mm宽×m长)    		安装张力N {kgf}
    推荐值最大值
    102.668 {6.9}82 {8.4}
    材质橡胶高强度氯丁橡胶

    		耐磨尼龙织布
    导电心线碳纤维和高强度玻璃纤维的混合物
    环境条件应用滑轮PX带轮P3M
    耐油、耐水性无 (不可使用)
    环境温度-15℃～80℃
    RoHS法规可对应
    导电性无

    皮带长度、标准价格、交货期


    ※是按订单生产的产品。批量销售品的批量请咨询本公司。

    *全部开启 全部关闭

    周长312 ~ 354

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG312UP3M10-HY312104请咨询请咨询批量销售PDF
    BG315UP3M10-HY315105请咨询请咨询批量销售PDF
    BG318UP3M10-HY318106请咨询请咨询批量销售PDF
    BG327UP3M10-HY327109请咨询请咨询批量销售PDF
    BG330UP3M10-HY330110请咨询请咨询批量销售PDF
    BG339UP3M10-HY339113请咨询请咨询批量销售PDF
    BG342UP3M10-HY342114请咨询请咨询批量销售PDF
    BG345UP3M10-HY345115请咨询请咨询批量销售PDF
    BG351UP3M10-HY351117请咨询请咨询批量销售PDF
    BG354UP3M10-HY354118请咨询请咨询批量销售PDF

    周长360 ~ 396

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG360UP3M10-HY360120请咨询请咨询批量销售PDF
    BG363UP3M10-HY363121请咨询请咨询批量销售PDF
    BG369UP3M10-HY369123请咨询请咨询批量销售PDF
    BG372UP3M10-HY372124请咨询请咨询批量销售PDF
    BG378UP3M10-HY378126请咨询请咨询批量销售PDF
    BG381UP3M10-HY381127请咨询请咨询批量销售PDF
    BG384UP3M10-HY384128请咨询请咨询批量销售PDF
    BG387UP3M10-HY387129请咨询请咨询批量销售PDF
    BG393UP3M10-HY393131请咨询请咨询批量销售PDF
    BG396UP3M10-HY396132请咨询请咨询批量销售PDF

    周长399 ~ 438

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG399UP3M10-HY399133请咨询请咨询批量销售PDF
    BG402UP3M10-HY402134请咨询请咨询批量销售PDF
    BG405UP3M10-HY405135请咨询请咨询批量销售PDF
    BG411UP3M10-HY411137请咨询请咨询批量销售PDF
    BG414UP3M10-HY414138请咨询请咨询批量销售PDF
    BG420UP3M10-HY420140请咨询请咨询批量销售PDF
    BG423UP3M10-HY423141请咨询请咨询批量销售PDF
    BG426UP3M10-HY426142请咨询请咨询批量销售PDF
    BG432UP3M10-HY432144请咨询请咨询批量销售PDF
    BG438UP3M10-HY438146请咨询请咨询批量销售PDF

    周长447 ~ 501

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG447UP3M10-HY447149请咨询请咨询批量销售PDF
    BG450UP3M10-HY450150请咨询请咨询批量销售PDF
    BG453UP3M10-HY453151请咨询请咨询批量销售PDF
    BG459UP3M10-HY459153请咨询请咨询批量销售PDF
    BG471UP3M10-HY471157请咨询请咨询批量销售PDF
    BG477UP3M10-HY477159请咨询请咨询批量销售PDF
    BG483UP3M10-HY483161请咨询请咨询批量销售PDF
    BG486UP3M10-HY486162请咨询请咨询批量销售PDF
    BG489UP3M10-HY489163请咨询请咨询批量销售PDF
    BG501UP3M10-HY501167请咨询请咨询批量销售PDF

    周长504 ~ 579

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG504UP3M10-HY504168请咨询请咨询批量销售PDF
    BG507UP3M10-HY507169请咨询请咨询批量销售PDF
    BG510UP3M10-HY510170请咨询请咨询批量销售PDF
    BG516UP3M10-HY516172请咨询请咨询批量销售PDF
    BG525UP3M10-HY525175请咨询请咨询批量销售PDF
    BG537UP3M10-HY537179请咨询请咨询批量销售PDF
    BG552UP3M10-HY552184请咨询请咨询批量销售PDF
    BG561UP3M10-HY561187请咨询请咨询批量销售PDF
    BG570UP3M10-HY570190请咨询请咨询批量销售PDF
    BG579UP3M10-HY579193请咨询请咨询批量销售PDF

    周长588 ~ 693

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG588UP3M10-HY588196请咨询请咨询批量销售PDF
    BG600UP3M10-HY600200请咨询请咨询批量销售PDF
    BG618UP3M10-HY618206请咨询请咨询批量销售PDF
    BG633UP3M10-HY633211请咨询请咨询批量销售PDF
    BG651UP3M10-HY651217请咨询请咨询批量销售PDF
    BG660UP3M10-HY660220请咨询请咨询批量销售PDF
    BG675UP3M10-HY675225请咨询请咨询批量销售PDF
    BG681UP3M10-HY681227请咨询请咨询批量销售PDF
    BG687UP3M10-HY687229请咨询请咨询批量销售PDF
    BG693UP3M10-HY693231请咨询请咨询批量销售PDF

    周长699 ~ 822

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG699UP3M10-HY699233请咨询请咨询批量销售PDF
    BG702UP3M10-HY702234请咨询请咨询批量销售PDF
    BG705UP3M10-HY705235请咨询请咨询批量销售PDF
    BG720UP3M10-HY720240请咨询请咨询批量销售PDF
    BG738UP3M10-HY738246请咨询请咨询批量销售PDF
    BG753UP3M10-HY753251请咨询请咨询批量销售PDF
    BG756UP3M10-HY756252请咨询请咨询批量销售PDF
    BG789UP3M10-HY789263请咨询请咨询批量销售PDF
    BG804UP3M10-HY804268请咨询请咨询批量销售PDF
    BG822UP3M10-HY822274请咨询请咨询批量销售PDF

    周长828 ~ 948

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG828UP3M10-HY828276请咨询请咨询批量销售PDF
    BG852UP3M10-HY852284请咨询请咨询批量销售PDF
    BG861UP3M10-HY861287请咨询请咨询批量销售PDF
    BG870UP3M10-HY870290请咨询请咨询批量销售PDF
    BG879UP3M10-HY879293请咨询请咨询批量销售PDF
    BG885UP3M10-HY885295请咨询请咨询批量销售PDF
    BG891UP3M10-HY891297请咨询请咨询批量销售PDF
    BG918UP3M10-HY918306请咨询请咨询批量销售PDF
    BG933UP3M10-HY933311请咨询请咨询批量销售PDF
    BG948UP3M10-HY948316请咨询请咨询批量销售PDF

    周长957 ~ 1110

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG957UP3M10-HY957319请咨询请咨询批量销售PDF
    BG972UP3M10-HY972324请咨询请咨询批量销售PDF
    BG981UP3M10-HY981327请咨询请咨询批量销售PDF
    BG1005UP3M10-HY1005335请咨询请咨询批量销售PDF
    BG1023UP3M10-HY1023341请咨询请咨询批量销售PDF
    BG1041UP3M10-HY1041347请咨询请咨询批量销售PDF
    BG1050UP3M10-HY1050350请咨询请咨询批量销售PDF
    BG1059UP3M10-HY1059353请咨询请咨询批量销售PDF
    BG1080UP3M10-HY1080360请咨询请咨询批量销售PDF
    BG1110UP3M10-HY1110370请咨询请咨询批量销售PDF

    周长1170 ~ 1689

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1170UP3M10-HY1170390请咨询请咨询批量销售PDF
    BG1191UP3M10-HY1191397请咨询请咨询批量销售PDF
    BG1281UP3M10-HY1281427请咨询请咨询批量销售PDF
    BG1305UP3M10-HY1305435请咨询请咨询批量销售PDF
    BG1338UP3M10-HY1338446请咨询请咨询批量销售PDF
    BG1344UP3M10-HY1344448请咨询请咨询批量销售PDF
    BG1380UP3M10-HY1380460请咨询请咨询批量销售PDF
    BG1443UP3M10-HY1443481请咨询请咨询批量销售PDF
    BG1638UP3M10-HY1638546请咨询请咨询批量销售PDF
    BG1689UP3M10-HY1689563请咨询请咨询批量销售PDF

    周长1749 ~ 1947

    型号周长mm齿数价格交货期销售形式PDF图纸
    BG1749UP3M10-HY1749583请咨询请咨询批量销售PDF
    BG1893UP3M10-HY1893631请咨询请咨询批量销售PDF
    BG1947UP3M10-HY1947649请咨询请咨询批量销售PDF
